What Are Burning And Dodging And How They Can Help Your Photos

When teaching modern digital photography I often forget those new to the general art of photography might not be familiar with classic terms and techniques and I need to take a step back. This post is for those who might have always wanted to ask, “What do people mean when they say ‘burn’ and ‘dodge’ in post-processing?”. If you can still smell the darkroom fumes when I bring up these terms, you can skip over this post.

Burning and dodging are two darkroom techniques used when printing a picture. A negative is placed in a projector and then pointed at a piece of photo paper (much like a slide projector projects an image on a screen). That photo paper is not like the paper you might be used to printing on at home now. It is light sensitive, just like film, and that is the whole reason for creating a darkroom; to control the amount of light hitting the paper which will expose it.

Now then, light from the projector passes through the negative and then hits the paper. The timing of the light exposure is controlled to certain tolerances just as the original exposure of the scene onto the negative was controlled. Light hits the negative evenly and then hits the paper evenly. This works well if the scene is even balanced. But what if there are areas that need to be lighter or darker? That’s where burning and dodging come in and they are simple.

The key to these terms and understanding them is to remember that the paper is white. Dodging is the process of covering over part of the light hitting the paper, creating a shadowed area that does not receive the same light exposure as the rest of the scene. Because this decreases the amount of light hitting the paper (remember; light hitting the paper = darker exposure), it lets more of the white paper show through, effectively lightening the image in that area. Burning is the opposite, it is only allowing light into one area of the image to increase the exposure time in that region and create a darker image for that area.

Both employ various methods of covering, from simply using a hand or piece of paper to creating custom templates. Further, the edge of the dodge or burn can be softened by moving the covering slightly as the paper is exposed.

All of this allows a photographer to create different exposures throughout one frame, which can more closely mimic the scene as it was when shot, or to use artistic expression to alter an image to one’s liking.

Now then, how can you use these techniques for your own gain in the modern age?

I’m going to show these techniques in use on Adobe Lightroom but they can be practiced on any program which allows for selective masking and exposure changes.

First, the image from a recent review of a Sigma 50-500mm lens (click on any image for a larger version).

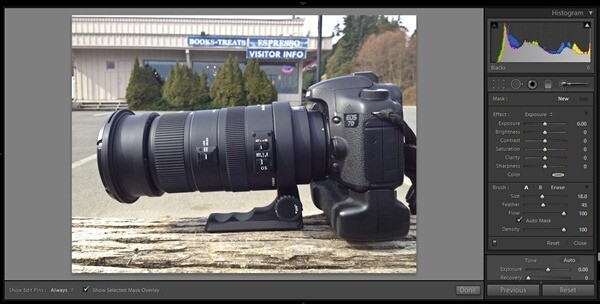

DPS1

The shot was taken with an iPhone and exposed for the lens with gray, overcast skies. I want to highlight the lens and diminish the background. The first thing I do is choose the Adjustment Brush and the Burn feature as such:

DPS2

DPS3

For this photo, the Burn setting is not dark enough for me, to be honest. I take the Exposure for this mask to -1.17 and this is the result:

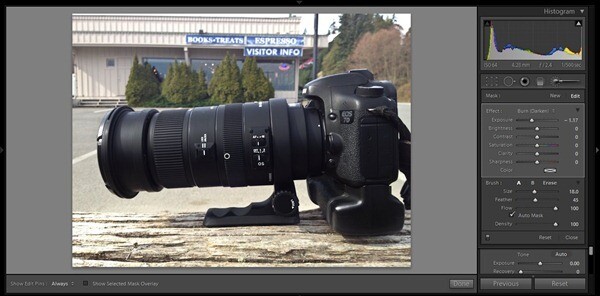

DPS4

The camera and lens are now darker, helping them stand out better against the background. I now want to do the opposite with the background. I want to dodge it to lighten it, further highlighting the lens. I start by painting a mask of the background:

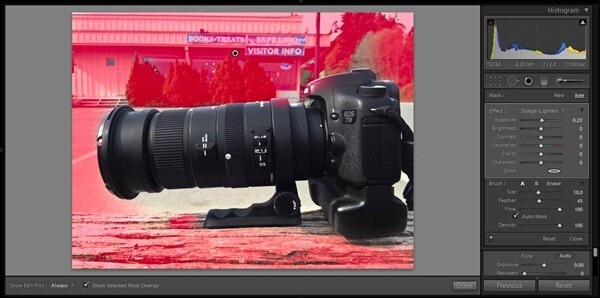

DPS5

Again, the Dodge is not to my liking and I instead change the exposure for this mask to be lighter.

DPS6

With these masks, I can also change contrast or brightness (done away with in Lightroom 4) to further highlight my subject if I liked. In this example I am keeping things simple.

The result is slight, but can be more dramatic if need be.

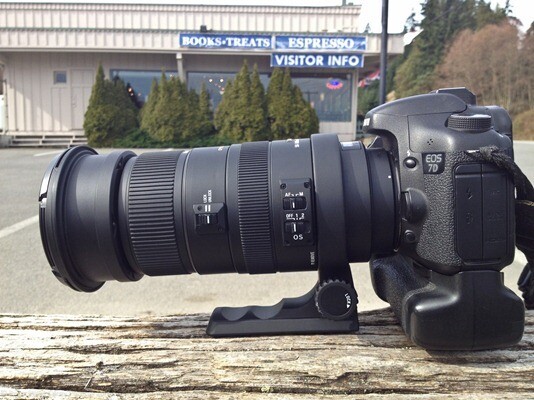

Before:

PeterWestCarey-CameraAwesomePhoto(4)-2

After:

PeterWestCarey-CameraAwesomePhoto(4)

Burning and Dodging have been around as long as making prints has been an art form where the photographer wished more control over their medium. The techniques are still highly relevant in today’s modern, digital era and I now hope you have a better understanding of where the terms came from and how best to use them.

Thank you for reading.
